Alto – PA Monitor

Algne hind oli: €153.00.Current price is: €101.00.

ALTO Monitor PA Processor is really efficient for PA monitoring. It’s based on many years of experience and is designed to provide studio engineer and sound
contractor with a precise equalization. It can be used to modify the frequency “contour” of a sound, eliminate the unwanted
frequencies and suppress the feedback well. For more information, please read this manual carefully.

TECH INFORMATION

  • An analogue EQ designed for PA and Monitor application

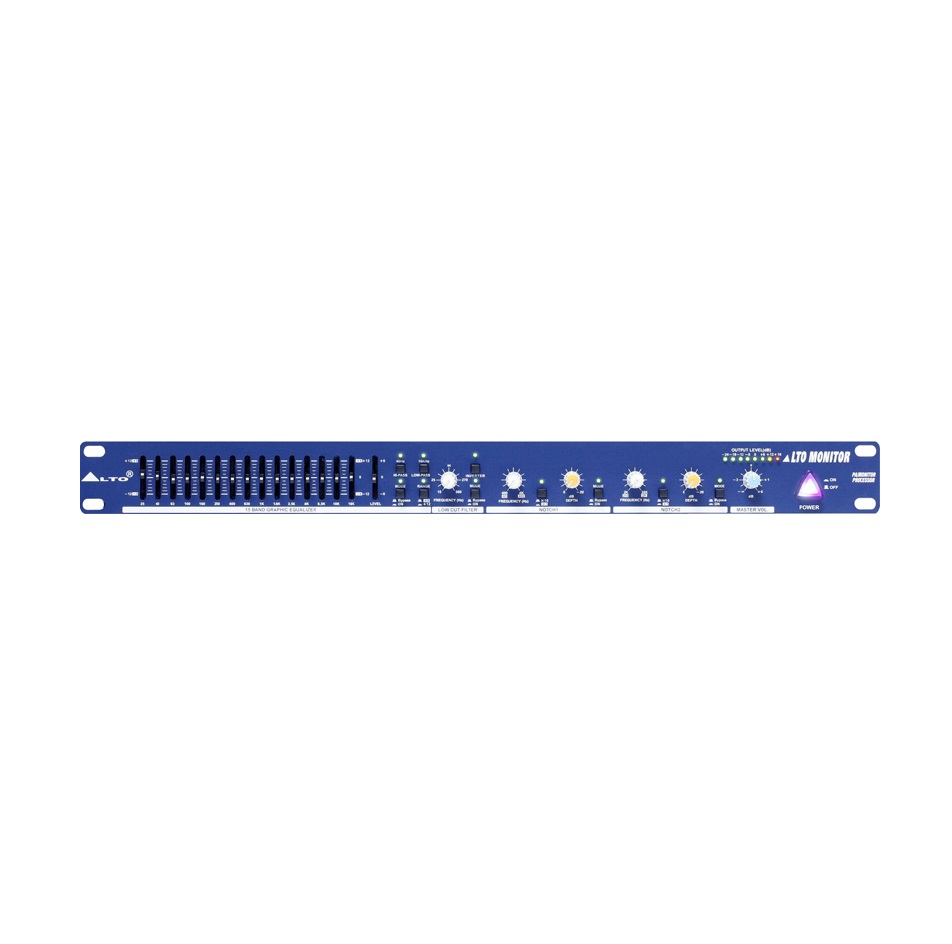

  • 15 – band 2 / 3 Octave Graphic EQ, switchable +/- 6dB or +/- 12dB
  • Two notch filters to reduce unwanted feedback frequencies, with frequency and cut controls
  • Lo – pass & Hi – pass 12dB / Oct. filters to reduce unwanted sounds and noises
  • Balanced Inputs / Outputs XLR & 1 / 4″ TRS jack
  • Dimensions (WxDxH): 483 x 194.1 x 44mm (19″ x 7.6″ x 1.7″)
  • Weight: 2.8kg (6.2 lb)
  • Control range 6dB or 12dB selectable
  • Bypass function
  • Switchable Hi – pass and Low – pass filters.

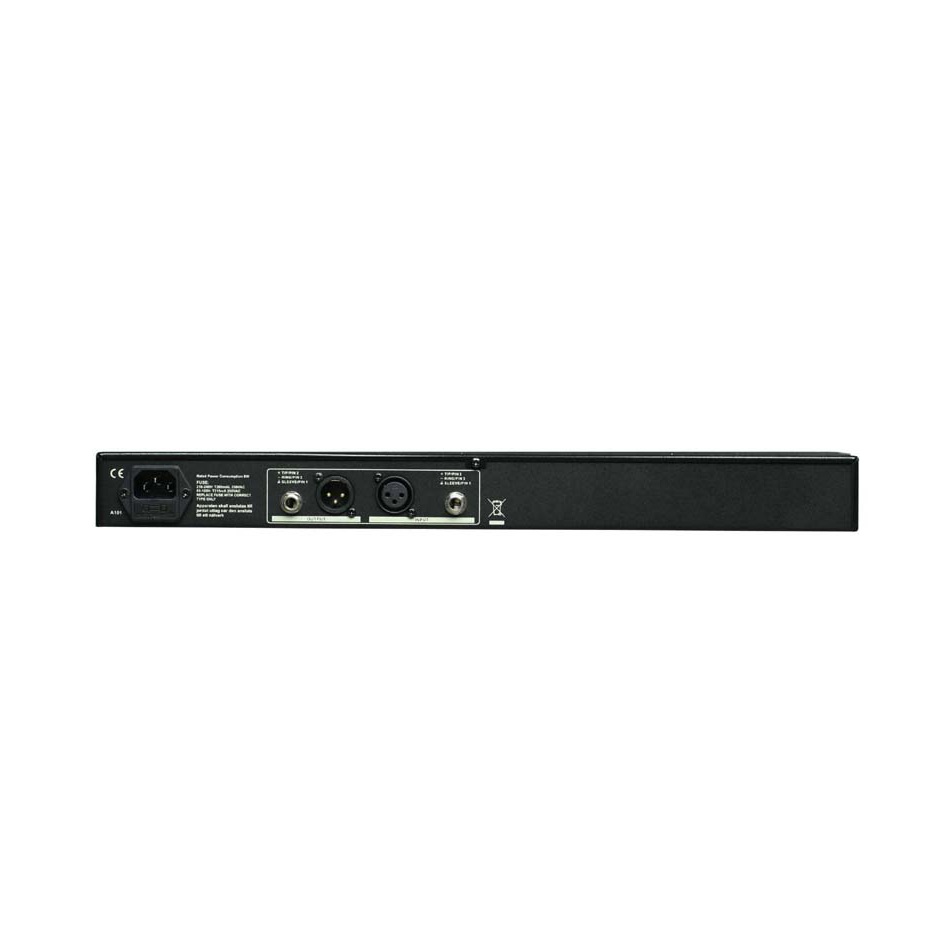

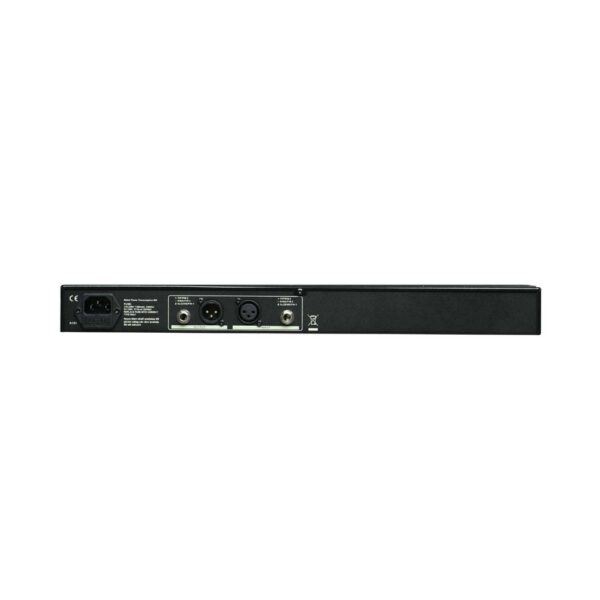

  • Balanced XLR, 1 / 4″ TRS and RCA input and output connectors
  • Signal clip LED
  • Ground “LIFT” switch to disconnect signal ground from chassis ground
  • Line voltage selectable (115V / 230V)
  • Control Range: +/-6dB or 12dB selectable
  • Inputs and Outputs: XLR, 1 / 4″ TRS and RCA jack
  • Inputs Impedance: 20K ohm (bal) 15K ohm (unbal)
  • Outputs Impedance: < 600 ohm
  • High Pass Filter: 40Hz (12dB/oct)
  • Low Pass Filter: 16kHz (12dB/oct)
  • Max. Input Level: +18dBV
  • Max. Output Level: +16dBV
  • THD%: 0.02% (at 1kHz, all slider at center)
  • Frequency Response: 20Hz to 50kHz, 3dB (all slider at center)
  • S / N Ratio: 117dB
  • Power Supply: AC 100V – 120V, 60Hz / AC 200V – 240V, 50Hz
  • Power Consumption: 15 watts (max)

Lisainfo

Brand

Alto Professional
