| Brand | Carvin |
|---|
Kõrvaklappide võimendid

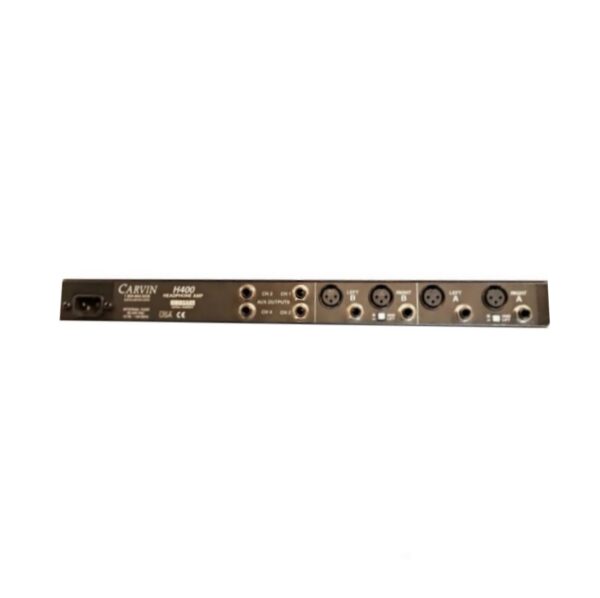

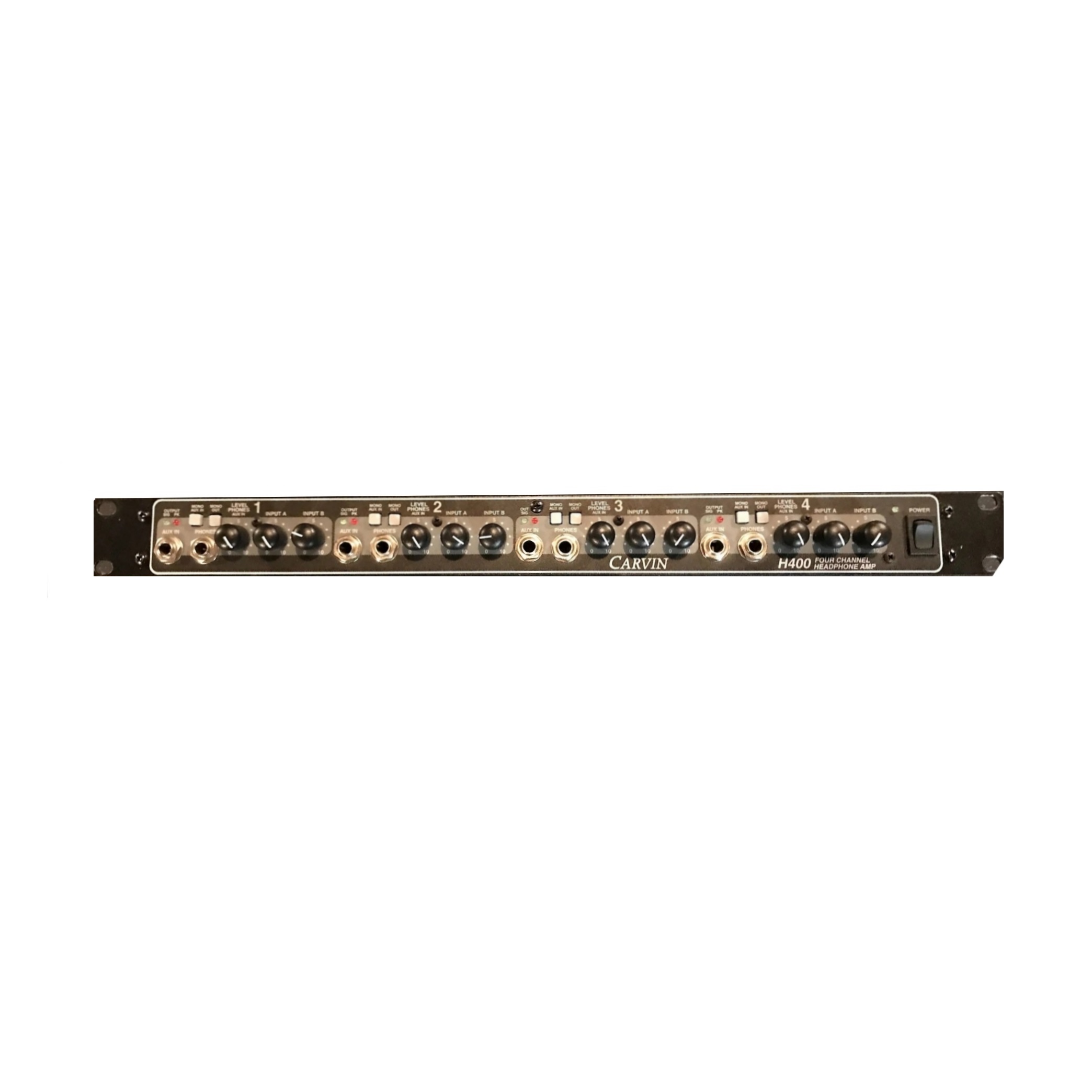

Carvin – H400 Four Channel Headphone Amplifier
Algne hind oli: €153.00.€61.00Current price is: €61.00.
Congratulations on your purchase of the CARVIN H400 Four
Channel Headphone Amp. Your unit has been engineered and
made in the U.S.A. using only high quality electronic components
and uncompromising workmanship.
The H400 will drive a total of eight pairs of headphones to their
maximum output with excellent clarity. The H400 features four
independent output channels each with it’s own mix of 3 stereo
sources: INPUT A, INPUT B and the AUX IN for that channel.
When using the unit in MONO, a total of 4 main inputs plus 2 aux
inputs for each channel are available. The signal routing flexibility
of the H400 makes it useful as a distribution amp for installation
applications.
Use caution with the H400. It is capable of high levels which may
cause hearing damage.
- FREQUENCY RESPONSE: 5Hz TO 40kHz, -0.5dB (INPUT A or B) 20Hz TO 40kHz, -0.5dB (AUX IN)
- OUTPUT POWER: 2W @ 40Ω, 800 mW @ 150Ω, 240mW @ 600Ω
- THD+N: 20Hz TO 20kHz, 0.01% @ 90% POWER
- INPUT IMPEDANCE: 20KΩ BAL., 10KΩ UNBAL
- OUTPUT IMPEDANCE: 11Ω or greater
- INPUT to OUTPUT GAIN: 20dB
- S/N RATIO: >100dB
- STEREO INPUTS A & B: XLR BALANCED, 1/4″ BALANCED or UNBALANCED with GROUND LIFT
- FRONT AUX INPUTS: 1/4″ STEREO, MONO switch
- OUTPUTS: 1/4″ STEREO front and rear, MONO switch, SIGNAL and PEAK indicators
- POWER REQUIREMENTS: 4VA, 90-255VAC, 50/60Hz SWITCHING SUPPLY
- FUSE: INTERNAL 1.5A FAST BLOW
- DIMENSIONS: 1.75″H x 19″W x 5″D
