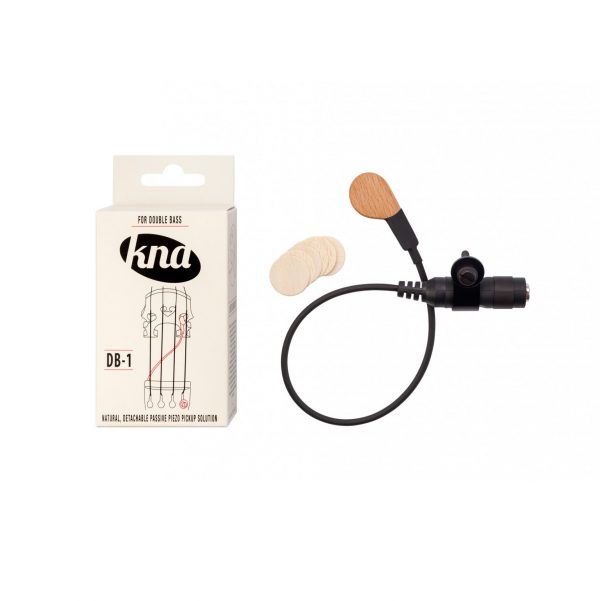

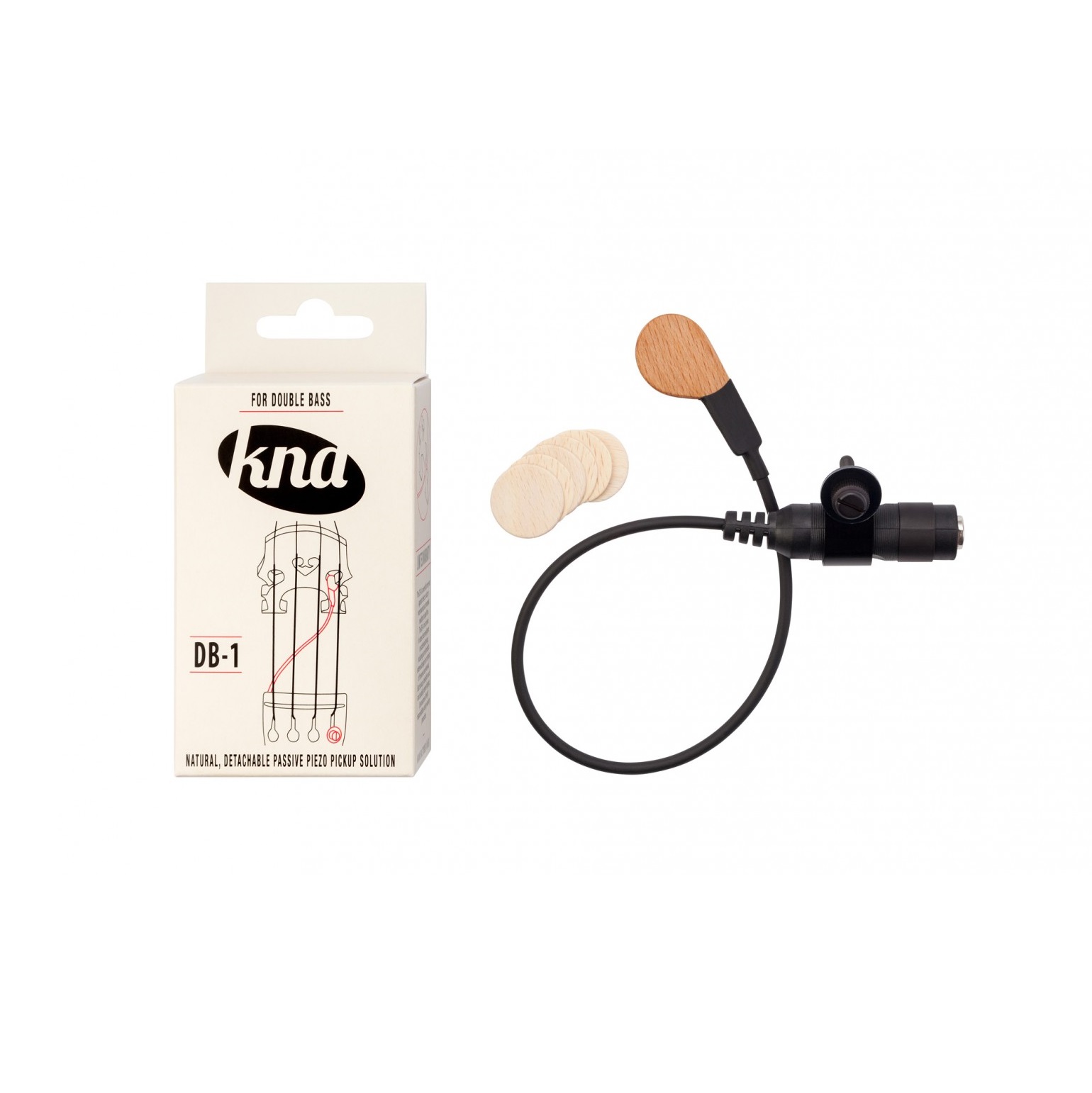

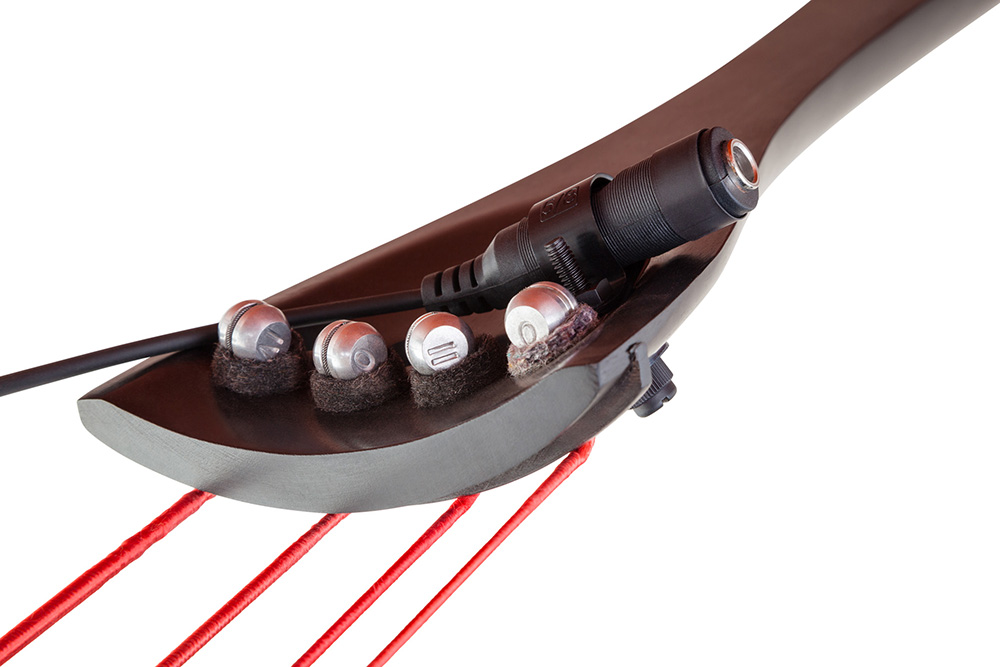

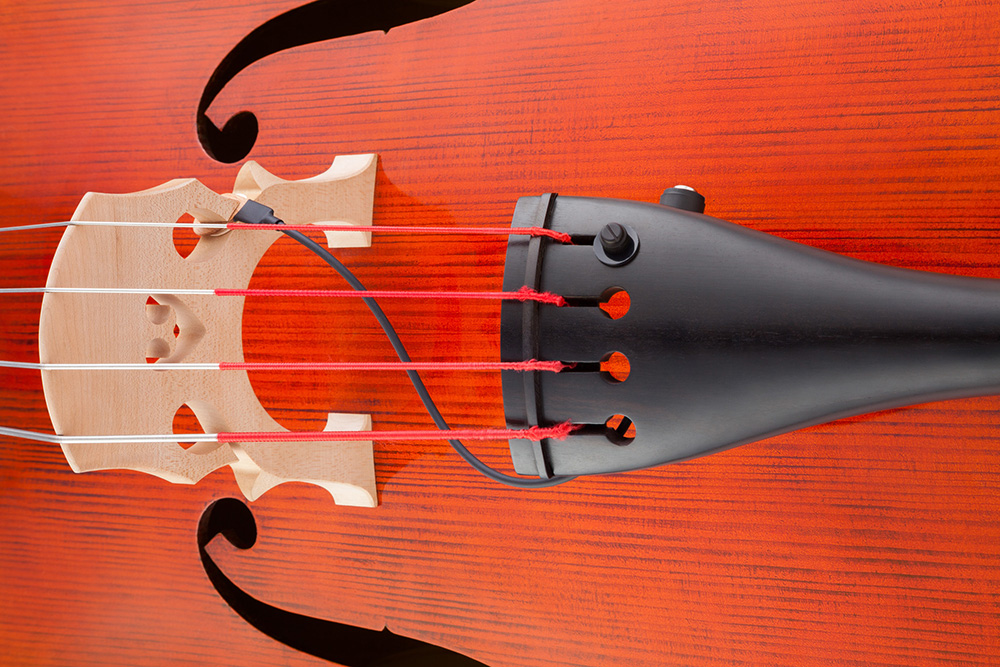

DB-1 faithfully reporduces the breadth of tone and dynamic range of your instrument without modification. A wood-encased piezo sensor installs in eye slot of the bridge, held in place via friction. Neatly-finished shim discs ensure the perfect fit. The 1/4″ jack housing secures non-destructively to the tailpiece with a screw assembly at the string eye. DB-1 is entirely passive, designed to work flawlessly with your favorite amplifier or colored via a preamp of choice.
|Diameter of the piezo element||22.5mm / 0.88″|
|Thickness of the piezo element||2.40mm +/- 0.08mm|
0.095″ +/- 0.003″
|Lead cable from jemale jack to element||29cm / 11.42″|
|Maximum Impedance||200 Ω|
